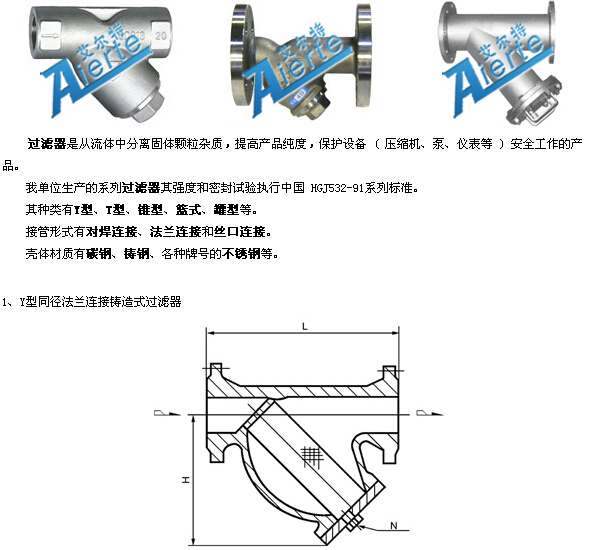

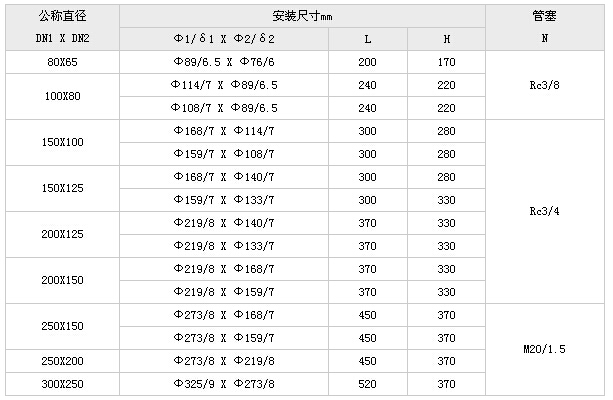

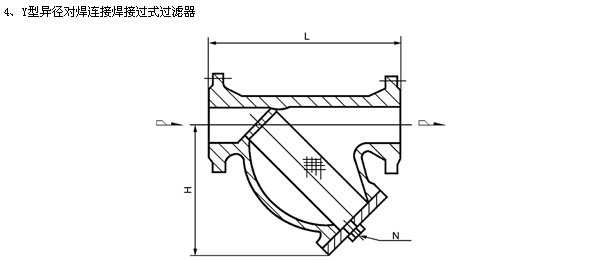

| Y型管道过滤器 |
|
| 公称直径DN |
安装尺寸MM |
管塞N |
| L |
H |
| 15 |
140 |
120 |
RC1/4 |
| 20 |
140 |
120 |
| 25 |
140 |
120 |
| 32 |
170 |
160 |
| 40 |
270 |
180 |
| 50 |
270 |
190 |
RC3/8 |
| 65 |
290 |
190 |
| 80 |
360 |
250 |
RC3/4 |
| 100 |
410 |
280 |
| 135 |
480 |
330 |
| 150 |
520 |
360 |
M20x1.5 |
| 200 |
660 |
450 |

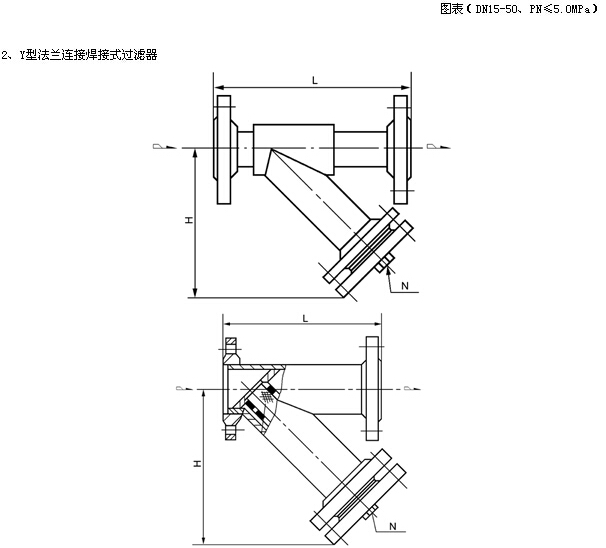

| 公称直径DN |
安装尺寸MM |
管塞N |
| L |
H |
| 15 |
260 |
180 |
RC1/4 |
| 20 |
270 |
190 |
| 25 |
270 |
190 |
| 32 |
280 |
230 |
| 40 |
280 |
230 |
| 50 |
290 |
245 |
RC3/8 |
| 65 |
320 |
280 |
| 80 |
350 |
315 |
| 100 |
425 |
360 |
| 135 |
480 |
390 |
| 150 |
540 |
460 |
RC3/4 |
| 200 |
700 |
540 |
| 250 |
800 |
660 |
M20x1.5 |
| 300 |
950 |
750 |
| 350 |
1050 |
845 |
| 400 |
1250 |
920 | |
| |

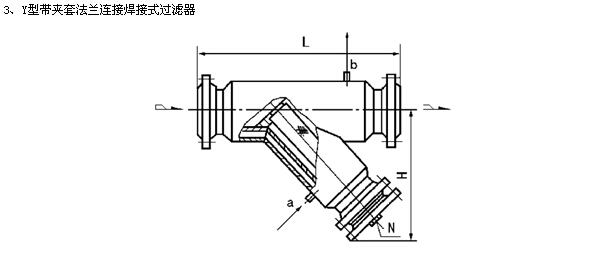

公称直径
DN |
安装尺寸mm |
夹 套 |
管塞
N |
| L |
H |
进口a |
出口b |
蒸汽压力 |
| 20 |
370 |
235 |
G1/2 |
G1/2 |
≤0.6MPa |
Rc1/4 |
| 25 |
370 |
235 |
G1/2 |
G1/2 |
| 32 |
390 |
275 |
G1/2 |
G1/2 |
| 40 |
390 |
285 |
G3/4 |
G3/4 |
| 50 |
420 |
295 |
G3/4 |
G3/4 |
Rc3/8 |
| 65 |
450 |
330 |
G3/4 |
G3/4 |
| 80 |
500 |
370 |
G3/4 |
G3/4 |
| 100 |
575 |
415 |
G3/4 |
G3/4 |
| 125 |
650 |
450 |
G3/4 |
G3/4 |
| 150 |
700 |
525 |
DN25 |
DN25 |
Rc3/4 |
| 200 |
890 |
610 |
DN25 |
DN25 | |
| |
|
|
